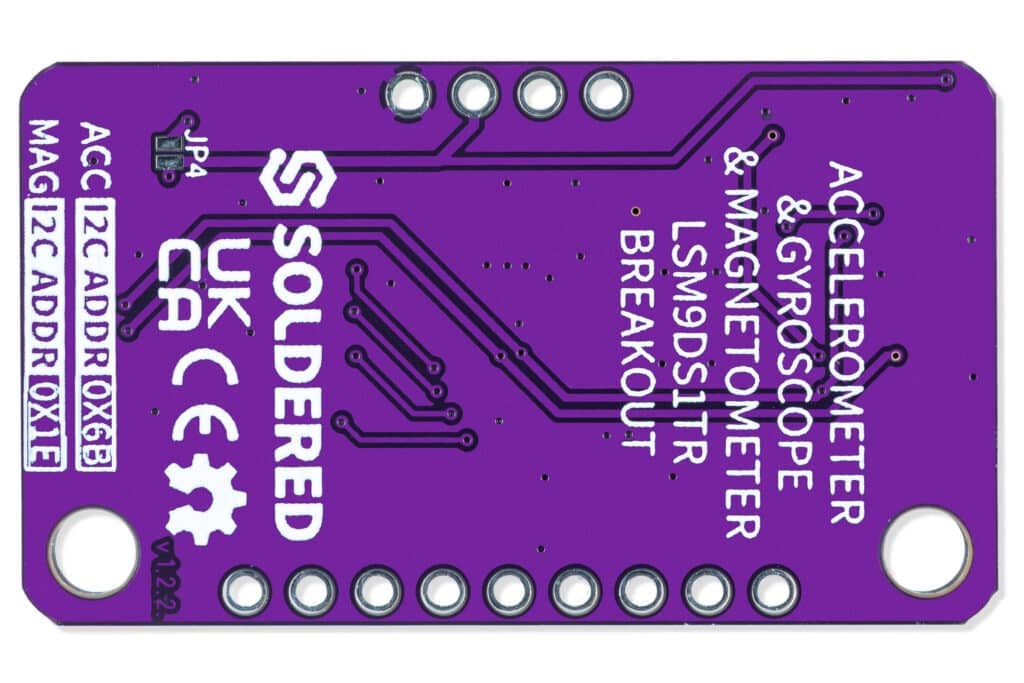

[RETIRED] Accelerometer & Gyroscope & Magnetometer LSM9DS1TR 9-DOF breakout
SKU: 333069
Bulk order
Get a special price per unit if you order more
[pricing_table]
Coming soon
Retired Product
This product has been retired from our shop and is no longer for sale. This page is made available for those looking for datasheets and the simply curious.
€17.95
Out of stock
Notify me when back in stock
24/7 lifetime customer and technical support
2-year Warranty - no questions asked
Comprehensive Documentation
Open-source everything
Product Description
This product is retired and we won’t sell it anymore. This page is for reference only.
Discover the magic of motion tracking with our all-in-one Accelerometer, Gyroscope & Magnetometer LSM9DS1TR Breakout! This mini but mighty module bundles together a 3D accelerometer, a 3D gyroscope, and a 3D magnetometer. It lets you monitor not only linear and rotational movements but also the magnetic field surrounding your projects. Despite its pocket-size, it offers high-accuracy measurements — ±16 g for the accelerometer, ±2000 dps for the gyroscope, and ±16 Gauss for the magnetometer.
It has an embedded temperature sensor, FIFO buffer for data management, and interrupt features to signal your microcontroller when data is ready or when a certain event occurs. Plus, with I2C interface, it can easily connect with a variety of microcontrollers.
Our LSM9DS1TR breakout merges high-end capabilities with a user-friendly approach. It operates within a supply voltage range of 2.4V to 3.6V, making it compatible with both 3.3V and 5V systems. Its low-power and power-down modes optimize performance without draining too much energy.

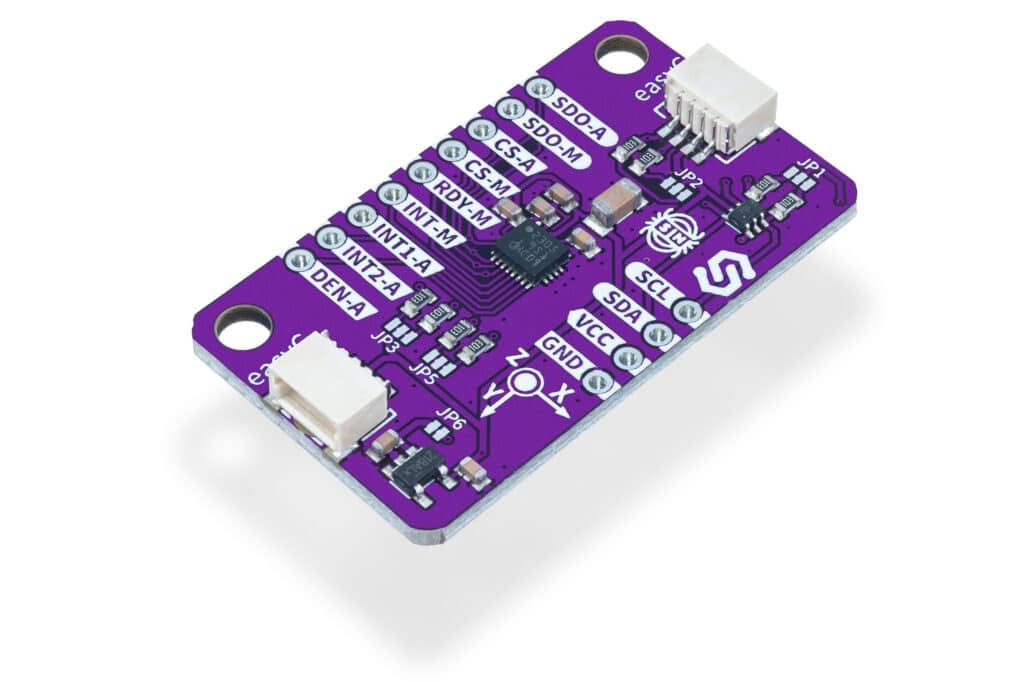

This breakout board comes with 2 easyC connectors which will simplify connection with microcontrollers. By using the easyC module connection system, forget about incorrectly connected or, in the worst case, damaged modules.
Product features
easyC
easyC is a system for simple connection of microcontroller boards, sensors and actuators that enables fast prototyping without the possibility of error. The connection between the modules takes place with simple cables. easyC is based on I2C communication. Read more here.
Made in EU
Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.
Open-source
Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Complimentary technical support
In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you. Key features
- 9-axis motion sensing
- Voltage: 3V3
- Accelerometer measurement range: ±2/±4/±8/±16 g
- Gyroscope measurement range: ±245/±500/±2000 dps
- Magnetometer measurement range: ±4/±8/±12/±16 Gauss
- 3D digital accelerometer, gyroscope and magnetometer in one package
- easyC connectors

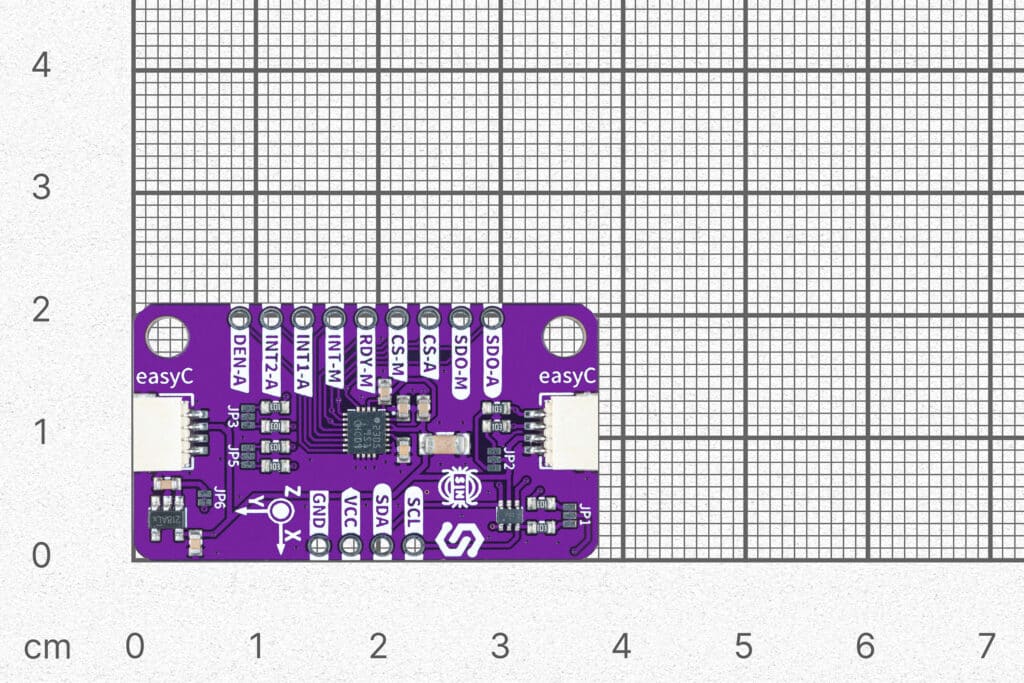

- Dimensions: 38 x 22 mm / 1.5 x 0.9 inch
Full product documentation
Getting started with Arduino
Arduino library
Arduino library documentation
Pinout drawing
Hardware details
Product datasheet
CE certificate Customer reviews & ratings
