Simple soil humidity sensor board with easyC
SKU: 333040
Bulk order
Get a special price per unit if you order more
[pricing_table]
6 items available
Original price was: €6.95.€3.50Current price is: €3.50.
6 in stock
24/7 lifetime customer and technical support
2-year Warranty - no questions asked
Comprehensive Documentation
Open-source everything
Product Description

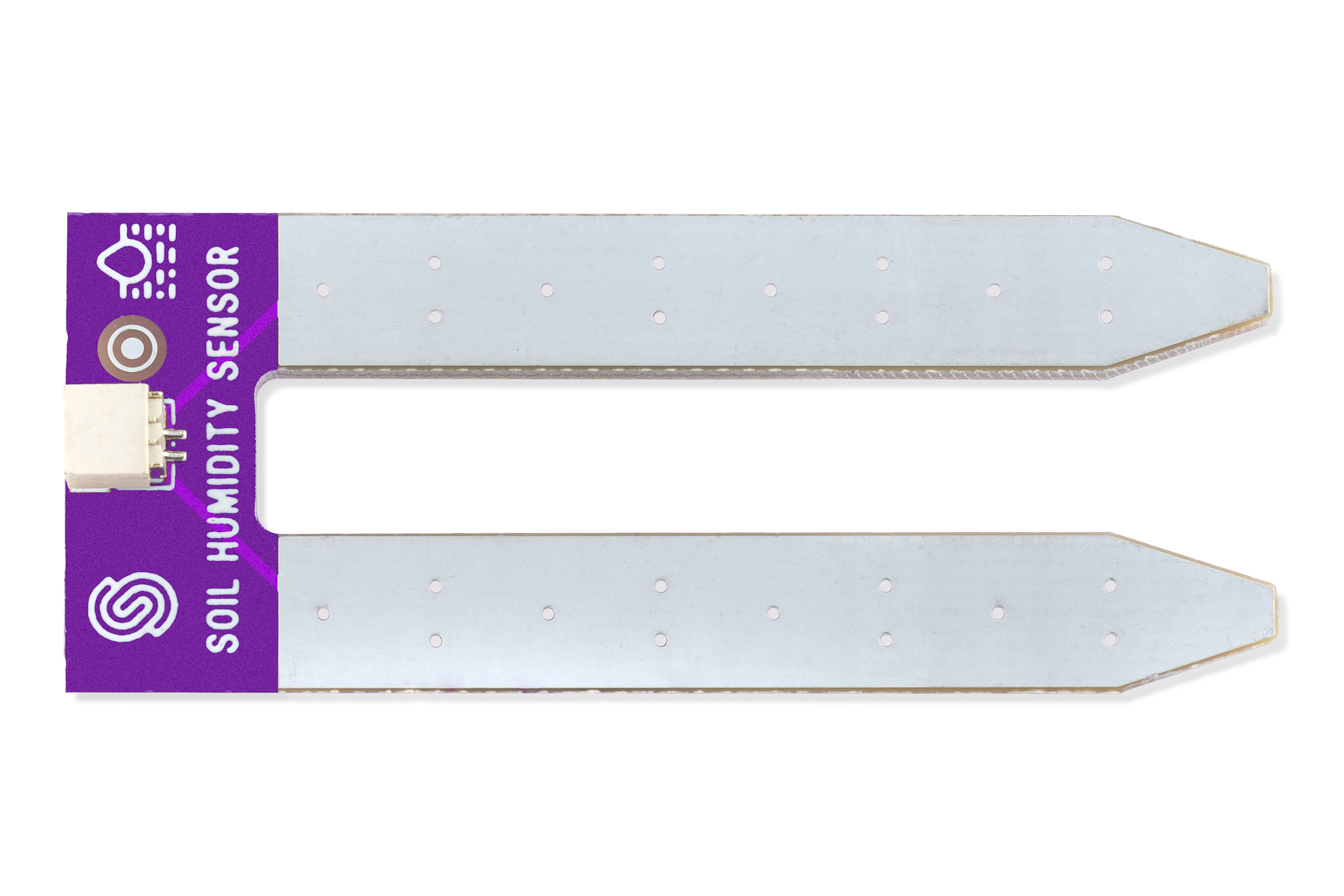

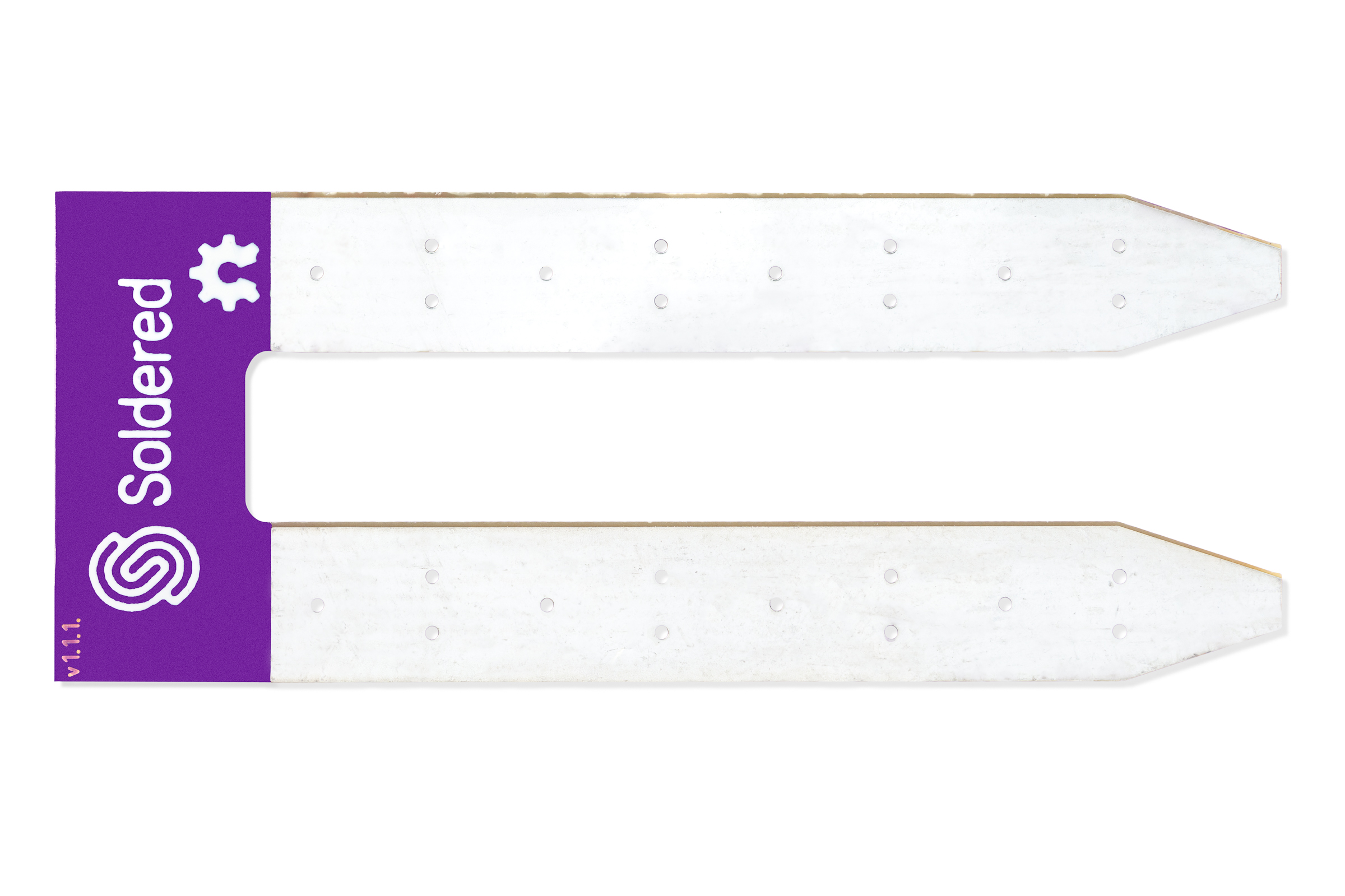

How many times have you watered your plants and feared you overdid it? With a simple soil moisture sensor, these worries are a thing of the past! This two-part sensor is easy to use. Two exposed prongs go into the soil and send moisture information to the sensor via a connected wire. The more water there is in the ground, the better the results will be.

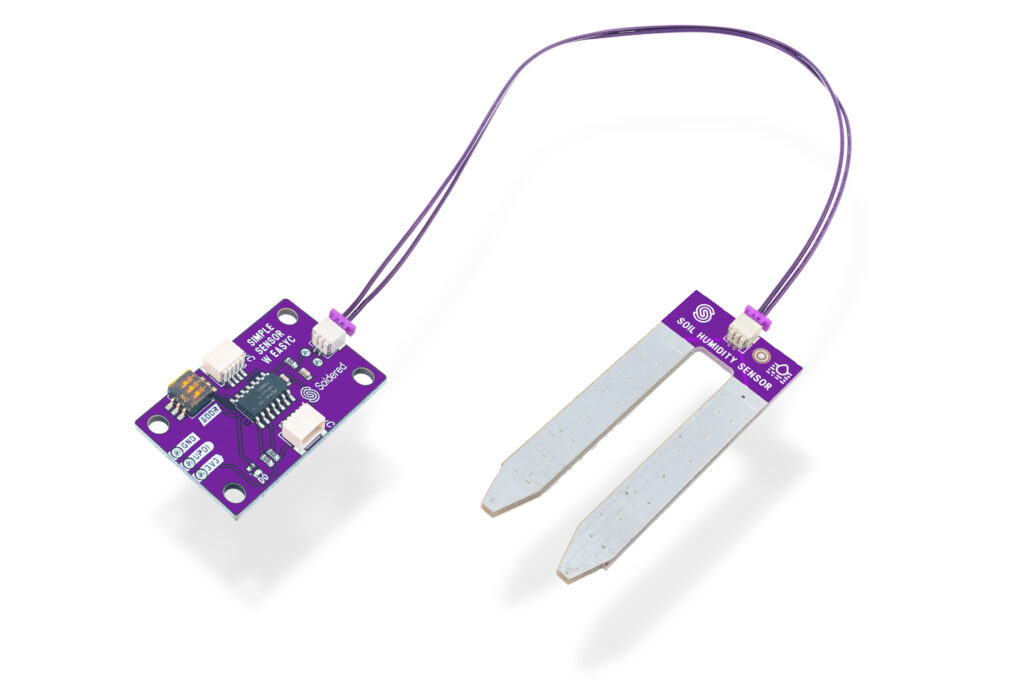

The two parts are connected with the included JST-SH 2-pin cable. The simple sensor has easyC connectors on it, which enables quick and easy connection with Dasduino microcontroller boards.
Product features
Complimentary technical support
In case you ever get stuck with using this product, you can count on us. We provide free, no-strings-attached technical support with this product. Just reach out to us with your questions, and we'll be there to help you.
easyC
easyC is a system for simple connection of microcontroller boards, sensors and actuators that enables fast prototyping without the possibility of error. The connection between the modules takes place with simple cables. easyC is based on I2C communication. Read more here.
Open-source
Open-source culture is rooted deep inside us, and that’s reflected in our products. This product follows the open-source principle. It was made with the community’s suggestions and needs in mind. With a modular design, it can be modified to your needs and incorporated into your projects. We provide all the design documentation needed free of charge on our Github repository.
Made in EU
Soldered products, designed and manufactured in Croatia, are thoroughly tested and meet the highest EU standards of quality and safety.
Key features
- Logic voltage level: same as operating voltage
- Operating voltage: 3V3
- Connectors: JST-SH 2-pin (female), comes with a cable

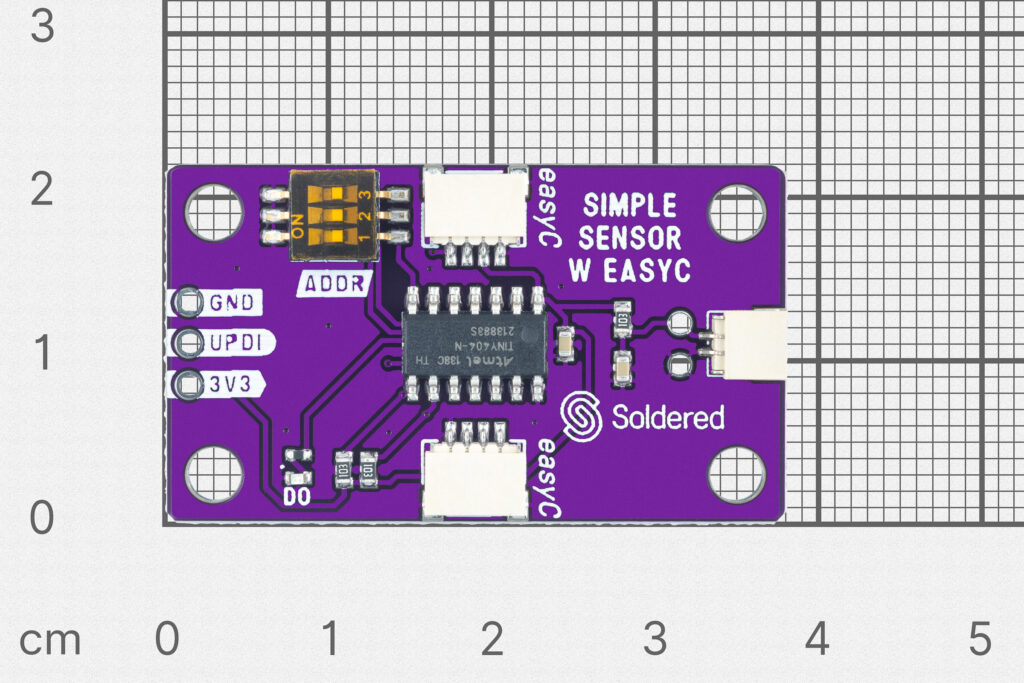

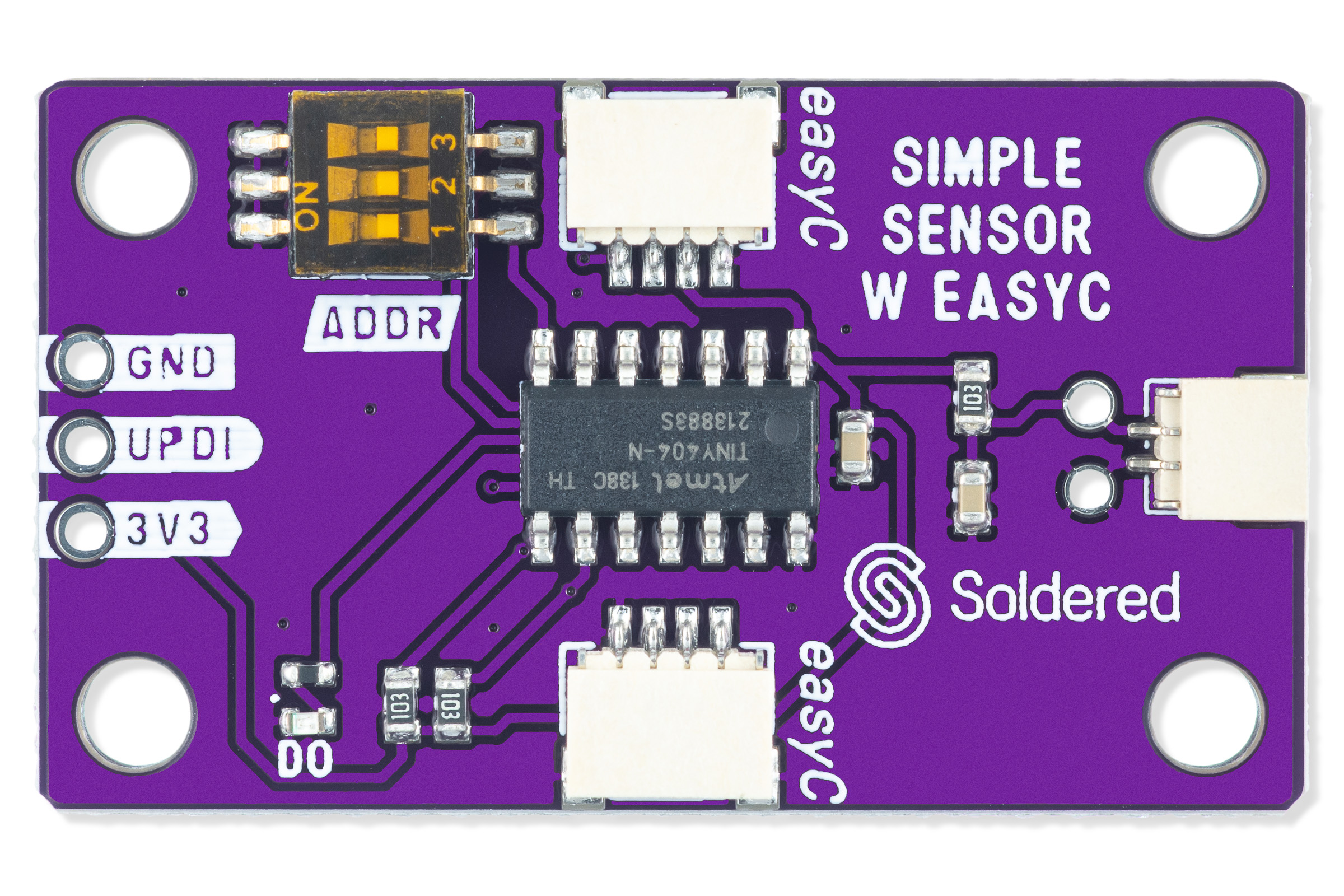

- ATTINY404 microcontroller onboard
- Mounting holes: 4 on simple sensor
- easyC connectors
- Dimensions: 54 x 22 mm, 38 x 22 mm / 2.1 x 0.9 inch, 1.5 x 0.9 inch
Full product documentation
Getting started with Arduino
Arduino library
Arduino library documentation
Pinout drawing
Hardware details
Main IC datasheet
